16. Which of the following logic expression is incorrect?
1 ⊕ 0 = 1
1 ⊕ 1 ⊕ 0 =1
1 ⊕ 1 ⊕ 1 = 1
1 ⊕ 1 = 0
You must be logged in to post a comment.
17. In the following Karnaugh map, corresponding switching function in its minimal form is
F( w , x , y , z ) = x' z'
F( w , x , y , z ) = ( x' + z' ) ( w + z' )( x + y+ z )
F( w , x , y , z ) = x z + w' z + x' y' z'
F( w, x , y , z ) = x' z' + w z' w z' + xyz

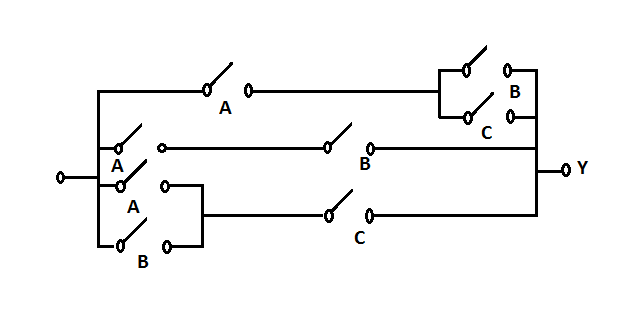

18. The minimum Boolean expression for the circuit is
19. Consider a function that is defined by the following truth table:
F(A, B, C )
They are logically equivalent because the don't cares are used in the same way
They are not logically equivalent because the don't cares are used in the different ways
They are not logically equivalent by definition
They are logically equivalent by definition

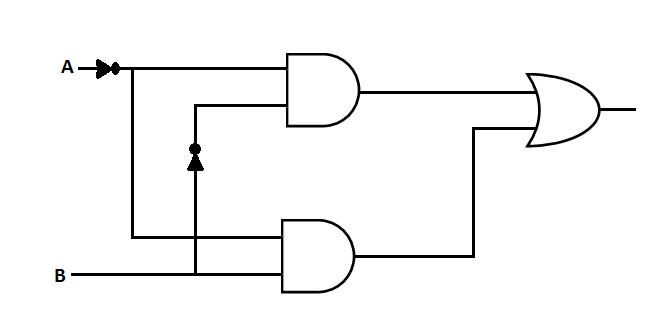

20. What is the Boolean expression for the circuit given below ?
F( A , B ) = A' B + A' B' = A'
F( A , B ) = A ⊕ B
F( A , B ) = A' + B'
F( A , B ) = A' B'
